Get the simplified Class 6 Maths NCERT Solutions of Ganita Prakash Chapter 9 Symmetry textbook exercise questions with complete explanation.
Ganita Prakash Class 6 Maths Chapter 9 Solutions Symmetry
NCERT Solutions for Class 6 Maths Ganita Prakash Chapter 9 Symmetry
9.1 Line of Symmetry Figure it Out (Page 219)
Question 1.
Do you see any line of symmetry in the figures at the start of the chapter? What about in the picture of the cloud?
Solution:
(a) Yes, there are six lines of symmetry.
(b) Yes, there is one line of symmetry.
(c) Yes, there are four lines of symmetry.
(d) There are no lines of symmetry in the picture of clouds.
Question 2.
For each of the following figures, IdentIfy the line(s) of symmetry if it exists.
Solution:
9.1 Line of Symmetry Figure it Out (Page 223 – 230)
Question 1.
In each of the following figures, a hole was punched in a folded square sheet of paper and then the paper was unfolded. Identify the line along which the paper was folded.
Figure (d) was created by punching a single hole. How was the paper folded?
Solution:
Question 2.
Given the line(s) of symmetry, find the other hole(s).
Solution:
Question 3.
Here are some questions on paper cutting.
Consider a vertical fold. We represent it this way:
Similarly, a horizontal fold is represented as follows
Solution:
Do it yourself.
Question 4.

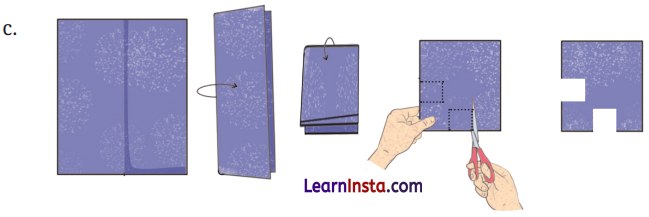

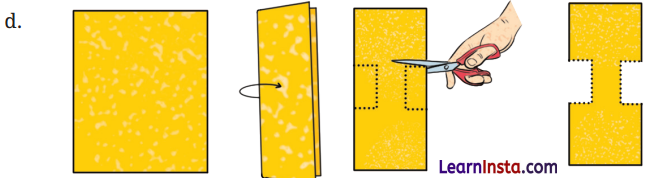

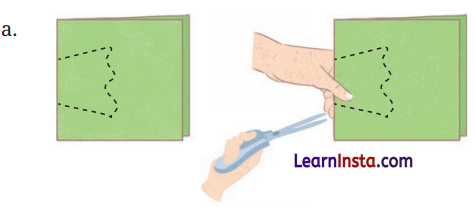

After each of the following cuts, predict the shape of the hole when the paper is opened. After you have made your prediction, make the cutouts and verify your answer.
Solution:
Solution:
Solution:
Do it yourself
Solution:
Do it yourself
Question 5.
Suppose you have to get each of these shapes with some folds and a single straight cut. How will you do it?
(a) The hole in the center is a square.
(b) The hole in the center is a square.
Note: For the ab6ve question, check if the 4-sided figures in the center satisfy both the properties of a square.
Solution:
(a) By folding the square sheet along length or breadth and cutting a square at the center, we can get a square.
(b) To get the figure as shown, we fold the square diagonally and then cut the required shape in it.
Question 6.
How many lines of symmetry do these shapes have?
(i)
(ii) A triangle with equal sides and equal angles.
(iii) A hexagon with equal sides and equal sides.
Solution:
(i) A diamond has 4 lines of symmetry, and the figure next to it has 4 lines of symmetry.
(ii) An equilateral triangle has three lines of symmetry.
(iii) A regular hexagon has six lines of symmetry.
Question 7.
Trace each figure and draw the lines of symmetry, if any:
Solution:
Question 8.
Find the lines of symmetry for the kolam below.
Solution:
Question 9.
Draw the following.
(a) A triangle with exactly one line of symmetry
Solution:
An isosceles triangle has one line of symmetry
(b) A triangle with exactly three lines of symmetry
Solution:
An equilateral triangle has one line of symmetry.
(c) A triangle with no line of symmetry
Is it possible to draw a triangle with exactly two lines of symmetry?
Solution:
A scalene triangle has no lines of symmetry.
No, it is not possible to draw a triangle with exactly two lines of symmetry.
Question 10.
Draw the following. In each case, the figure should contain at least one curved boundary.
(a) A figure with exactly one line of symmetry
Solution:
(b) A figure with exactly two lines of symmetry
Solution:
(c) A figure with exactly four lines of symmetry
Solution:
Question 11.
Copy the following on squared paper. Complete them so that the blue line is a line of symmetry. Problem (a) has been done for you.
Hint: For (c) and (f), see if rotating the book helps!
Solution:
Question 12.
Copy the following drawing on squared paper. Complete each one of them so that the resulting fiure has the two blue lines as lines of symmetry.
Solution:
Question 13.
Copy the following on a dot grid. For each figure draw two more lines to make a shape that has a line of symmetry.
Solution:
9.2 Rotational Symmetry Figure it Out (Page 235 – 236)
Question 1.
Find the angle of symmetry for the given figures about the point marked.
Solution:
(a) 90°
(b) 360°
(c) 180°
Question 2.

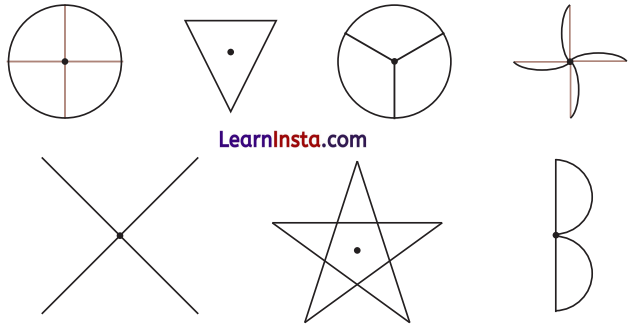

Which of the following figures have more than one angle of symmetry?
Solution:

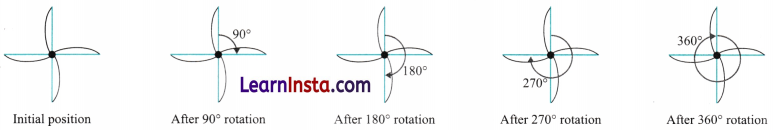

The given figure comes back to its original shape when we rotate it about 90°, 180°, 270° and 360°. Thus, the given figure has 4 angles of symmetry (90°, 180°, 270° and 360°).
The figure comes back to its original shape only after 360° rotation. So, the figure has only one angle of symmetry i.e., 360°.

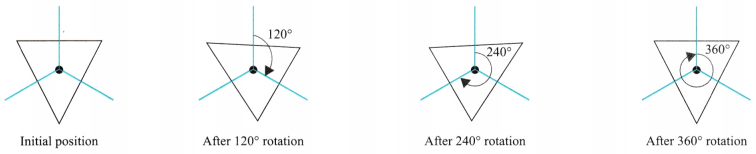

The given figure comes back to its original shape when we rotate it about 120°, 240° and 360°. Thus, the given figure has 3 angles of symmetry (120°, 240° and 360°).

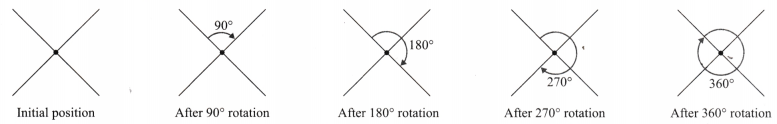

The given figure comes back to its original shape when we rotate it about 90°, 180°, 270° and 360°. Thus, the given figure has 4 angles of symmetry (90°, 180°, 270° and 360°).
The given figure comes back to its original shape when we rotate it about 90°, 180°, 270° and 360°. Thus, the given figure has 4 angles of symmetry (90°, 180°, 270° and 360°).

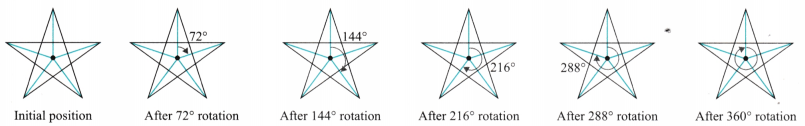

The given figure comes back to its original shape when we rotate it about 72°, 144°, 216°, 288° and 360°. Thus, the given figure has 5 angles of symmetry (72°, 144°, 216°, 288° and 360°).
The given figure comes back to its original shape when we rotate it about a complete turn, i.e., at 360°. Thus, the figure does not have
Question 3.

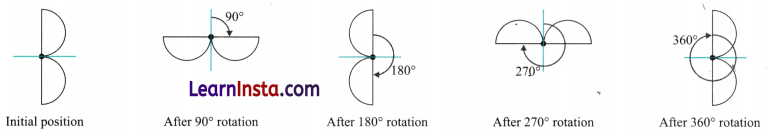

Give the order of rotational symmetry for each figure:
Solution:
9.2 Rotational Symmetry Figure it Out (Page 238)
Question 1.
Color the sectors of the circle below so that the figure has
(a) 3 angles of sjjmmetry
(b) 4 angles of symmetry
(c) what are the possible numbers of angles of symmetry you can obtain by coloring the sectors in different ways?
Solution:
(a) Will look same after every rotation of 120°.
(b) Will look same after every rotation of 90°.
(c) Four ways are possible.
Question 2.

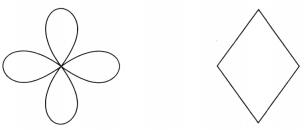

Draw two figures other than a circle and a square that have both reflection symmetry and rotational symmetry.
Solution:
Question 3.
Draw wherever possible, a rough sketch of
(a) a triangle with atleast two lines of symmetry and atleast two angles of symmetry.
(b) a triangle with only one line of symmetry but not having rotational symmetry.
(c) a quadrilateral with rotational symmetry but no reflection symmetry.
(d) a quadrilateral with reflection symmetry but not having rotational symmetry.
Solution:
Question 4.
In a figure, 60° is the smallest angle of symmetry. What are the other angles of symmetry of this figure?
Solution:
It will also look the same by rotating at an angle of 120°, 180°, 240°, 300°, and 360° as these are the multiples of 60°.
Question 5.
In a figure, 60° is an angle of symmetry. The figure has two angles of symmetry less than 60°. What is its smallest angle of symmetry?
Solution:
Smallest angle of symmetry = 60° ÷ 3 = 20°.
Question 6.
Can we have a figure with rotational symmetry whose smallest angle of symmetry is
(a) 45 °?
(b) 17°?
Solution:
(a) Since, the complete rotation is 360°. Then, if the given angle divides 360°, it can be an angle of symmetry.
Here, \(\frac{360^{\circ}}{45^{\circ}}\) = 8, which is a whole number.
Therefore, 45° can be the smallest angle of symmetry of a figure.
(b) Here, \(\frac{360^{\circ}}{17^{\circ}}\) = 21 \(\frac{3}{17}\), which is not a whole number.
Therefore, 17° cannot be the smallest angle of symmetry.
Question 7.

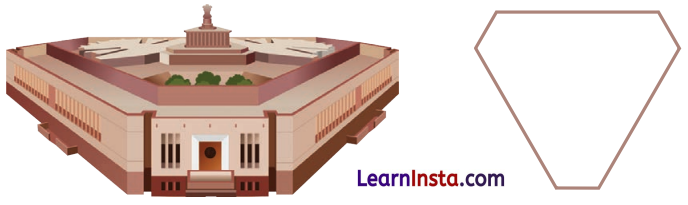

This is a picture of the new Parliament Building in Delhi.
(a) Does the outer boundary of the picture have reflection symmetry? If so, draw the lines of symmetries. How many are they?
(b) Does it have rotational symmetry around its centre?
If so, find the angles of rotational symmetry.
Solution:

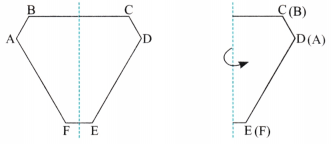

(a) Let us label the given figure and check whether its one side overlaps the other side when folded it about the dotted line drawn in the middle of the figure.
We observes that one half covers exactly the other half. Thus, it has a reflection symmetry.
Lines of symmetry:
There are three lines of symmetry.
(b) The given figure has rotational symmetry around its centre. When we rotate it about 120°, 240° and 360°, we get the original shape. Thus, the angles of rotational symmetry are 120°, 240° and 360°.
Question 8.
How many lines of symmetry do the shapes in the first shape sequence in Chapter 1, Table 3, the Regular Polygons, have? What number sequence do you get?
Solution:
Do Yourself
Question 9.
How many angles of symmetry do the shapes in the fist shape sequence in Chapter 1, Table 3, the Regular Polygons, have? What number sequence do you get?
Solution:
Number of angles of symmetry = number of lines of symmetry.
Hence we get the number sequence: 3, 4, 5, 6, 7, ………..
Question 10.
How many lines of symmetry do the shapes in the first shape sequence in Chapter 1, Table 3, the Koch Snowflake sequence, have? What angle of symmetry?
Solution:
The triangular shape has 3 lines of symmetry and 3 angles of symmetry.
In six-pointed stars, lines of symmetry are 12 and the angle of symmetry is 6.
The lines of symmetry and angle of symmetry for the rest three figures are the same as six-pointed stars.
Question 11.
How many lines of symmetry and angles of symmetry does Ashoka Chakra have?
Solution:
The Ashoka Chakra has 24 spokes spread equally.
24 spokes make 12 pairs.
Line through an opposite pair is a line of symmetry.
Hence, there are 12 lines of symmetry.
Smallest angle of symmetry = 360° ÷ 2 = 30°.
Other angles of symmetry are its multiple up to 360.
Other angles are 60°, 120°, 150°, ………… , 360°. (12 angles in all).
